THE POD HOTEL
a paid freelance design for a japanese inspirated pod hotel for the US market

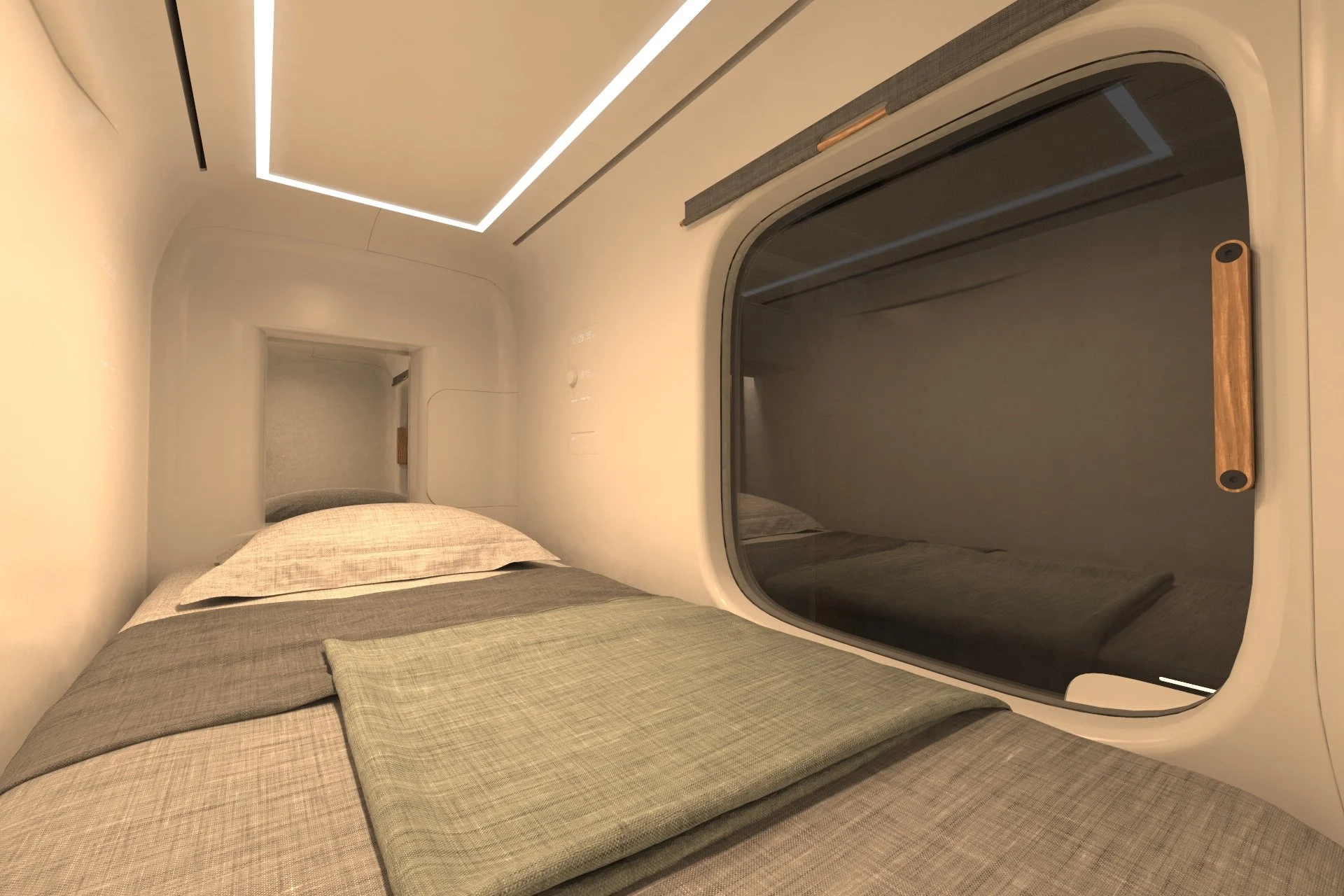

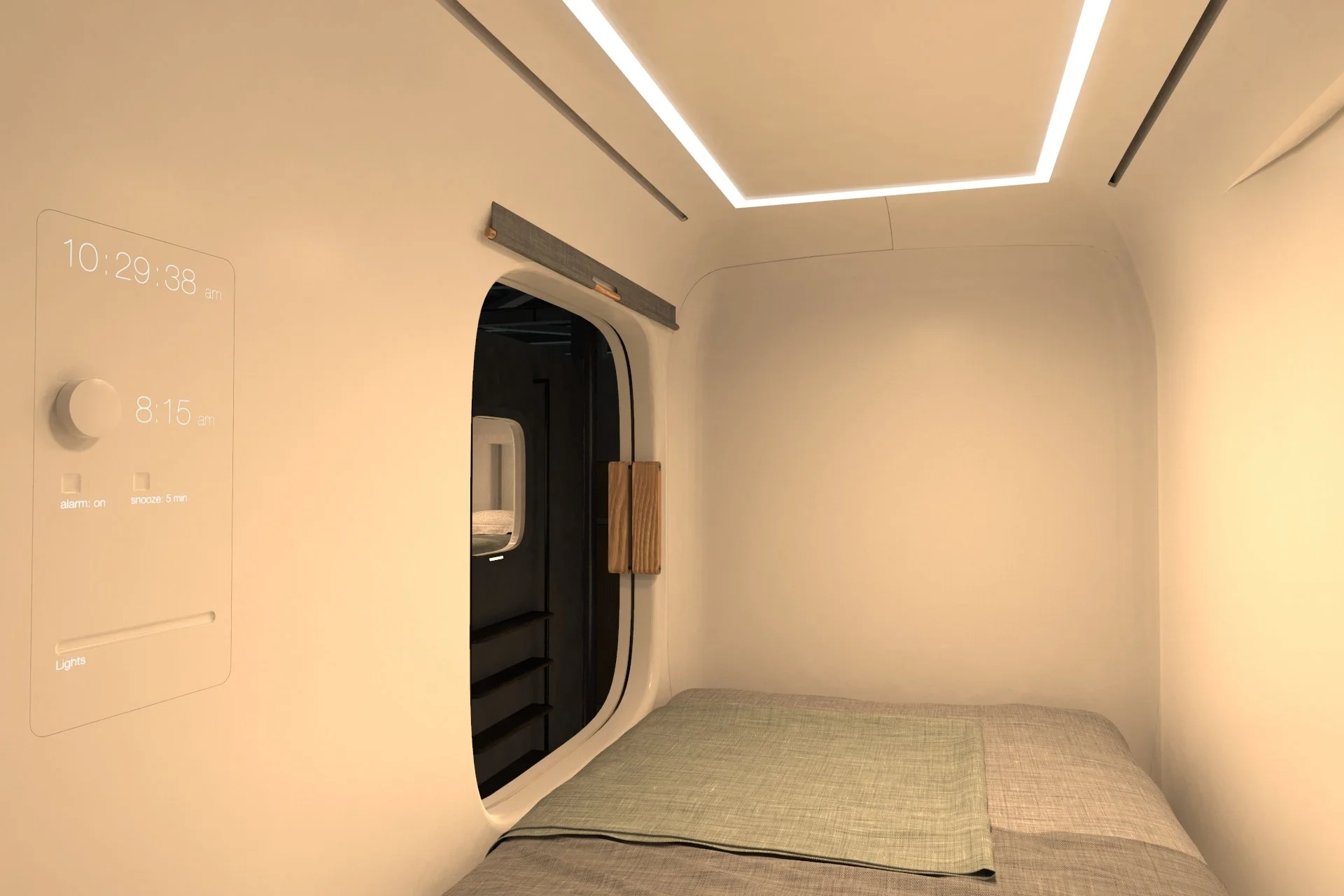

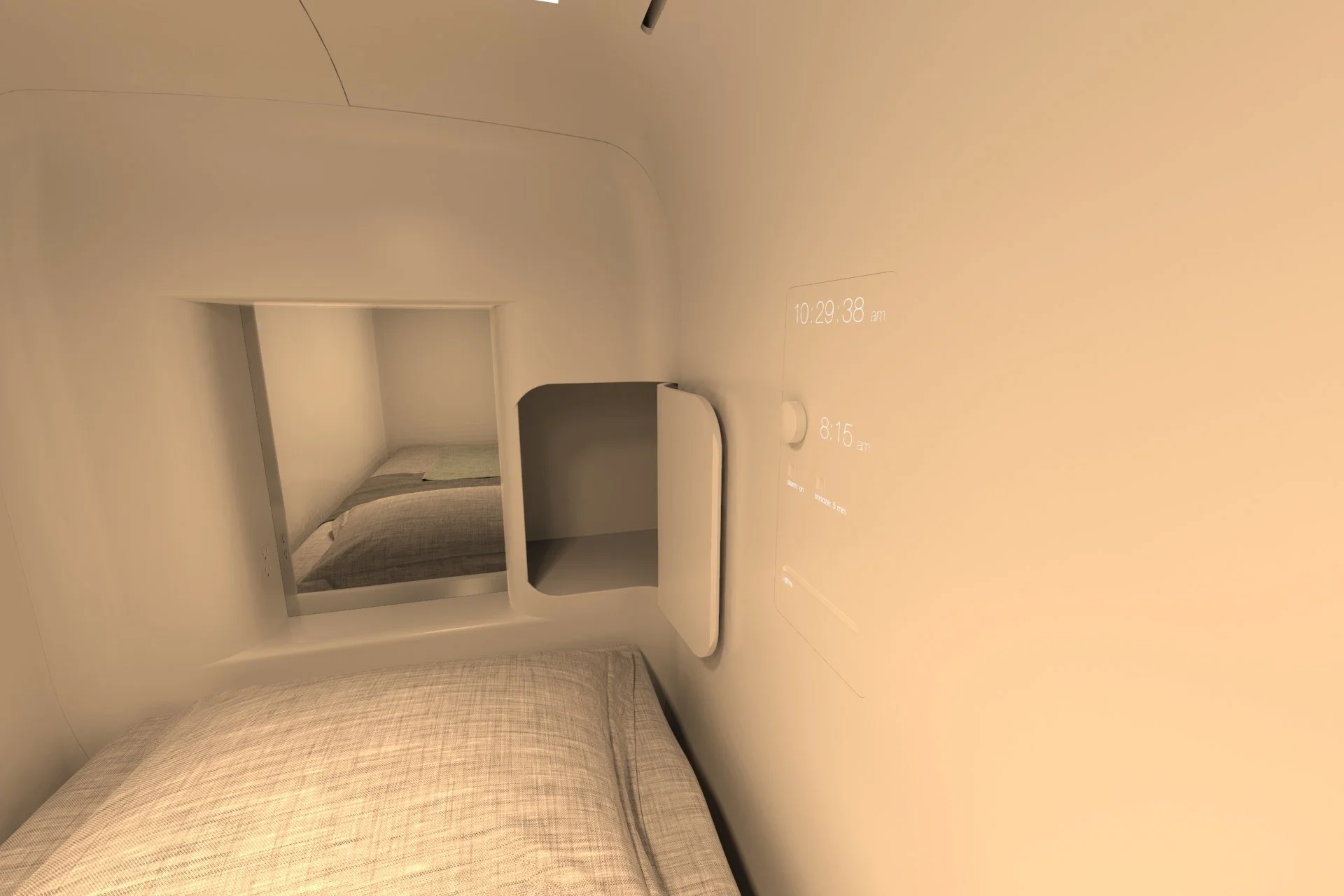

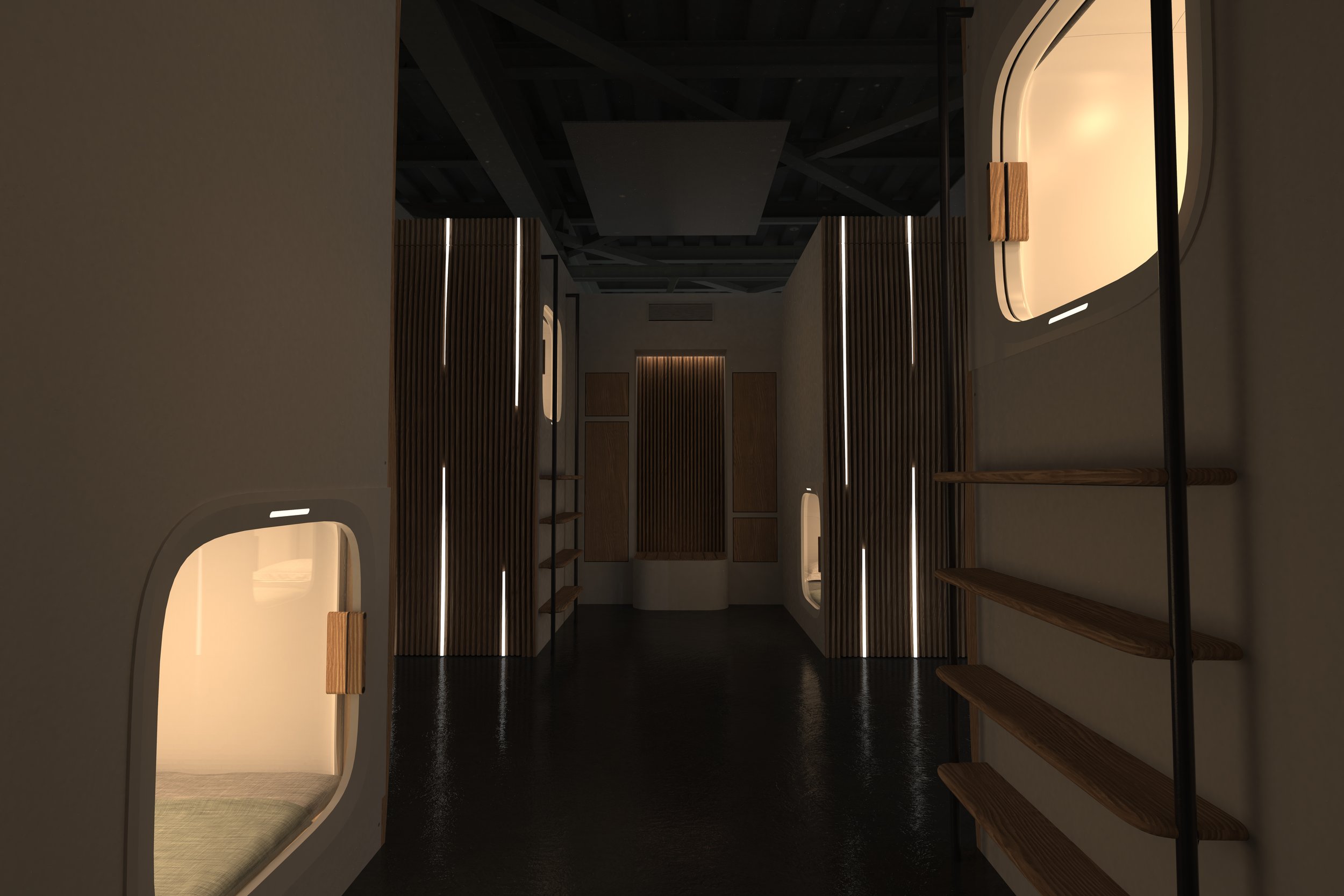

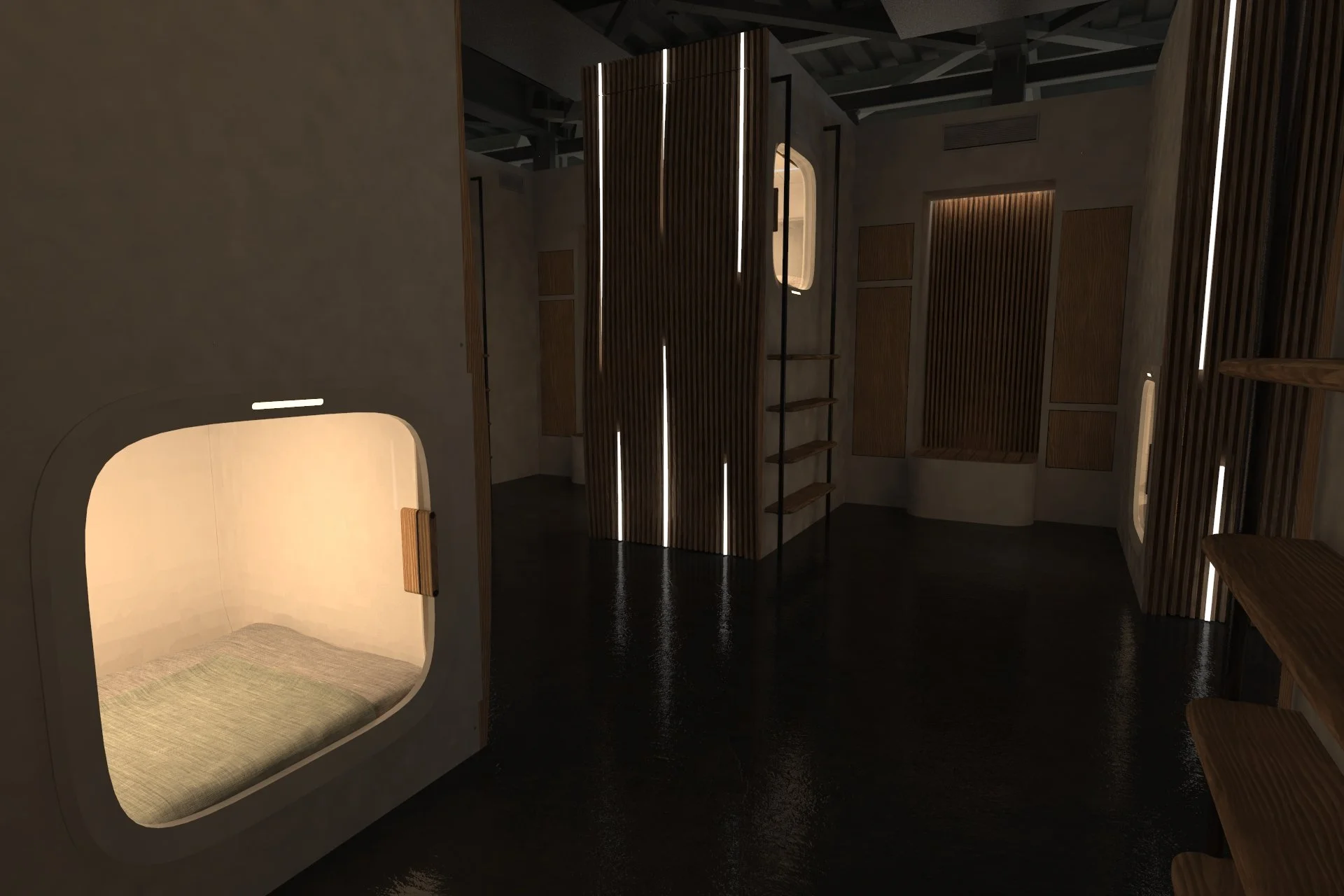

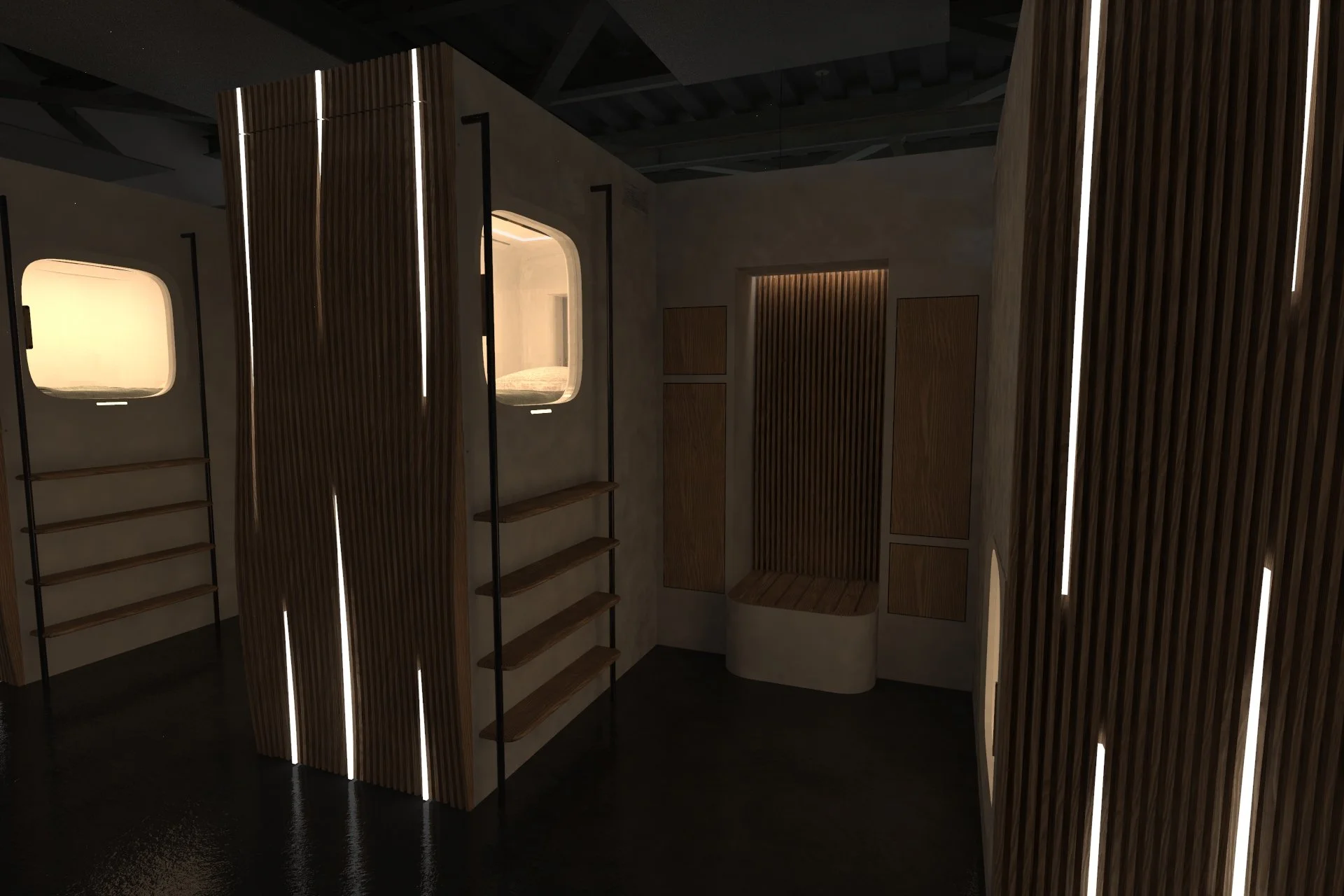

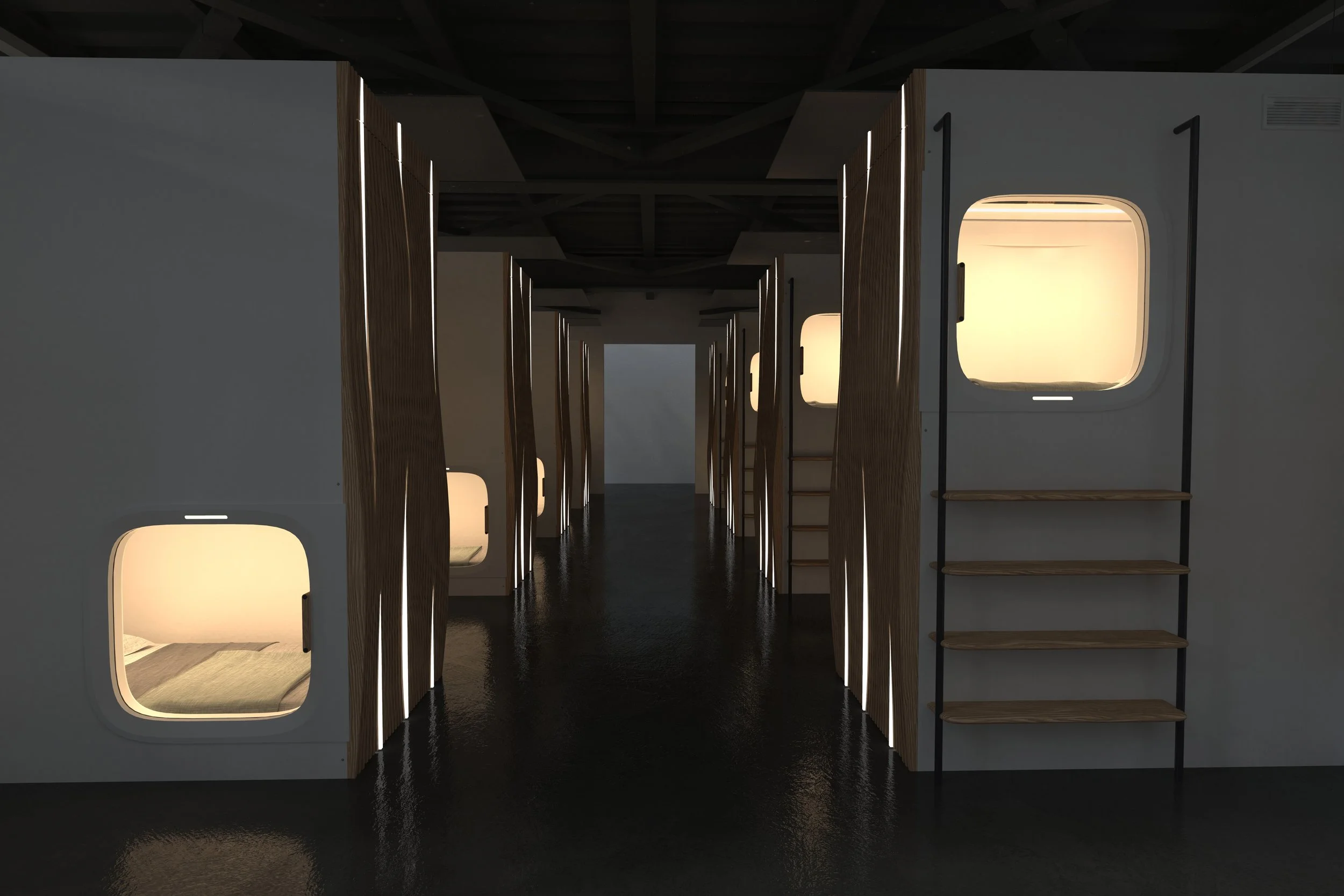

Interior Inspiration
The Pod Hotel
Ideation
A: Stacked / Front Entry
Estimated square footage for 120 units: 3,875ft² (8ft Wide Corridor)/ 770ft² Locker Room/ 4,645ft² total.
B: Stacked / Side Entry
Estimated square footage for 120 units: 3,875ft² (8ft Wide Corridor)/ 770ft² Locker Room/ 4,645ft² total.
120 units: 9,600ft² (5ft Wide Corridor)
C: Medium Pod Room
D: Medium Pod Room
120 units: 9,900ft² 120 units: 6,875ft²
E: Medium Pod – Stacked
120 units: 5,520ft²
F: Medium Pod – Stacked
120 units: 7,425ft², 5,818 ft² (without closets)
G: Medium Pod – Stacked
120 units: 7,000ft²
H: Medium Pod – Triple Stack
120 units: 10,080ft² (Two 5ft Wide Corridors)/ Square footage doesn’t factor in multiple levels.
120 units: 7,000ft²
I: King/Twin – Stacked
